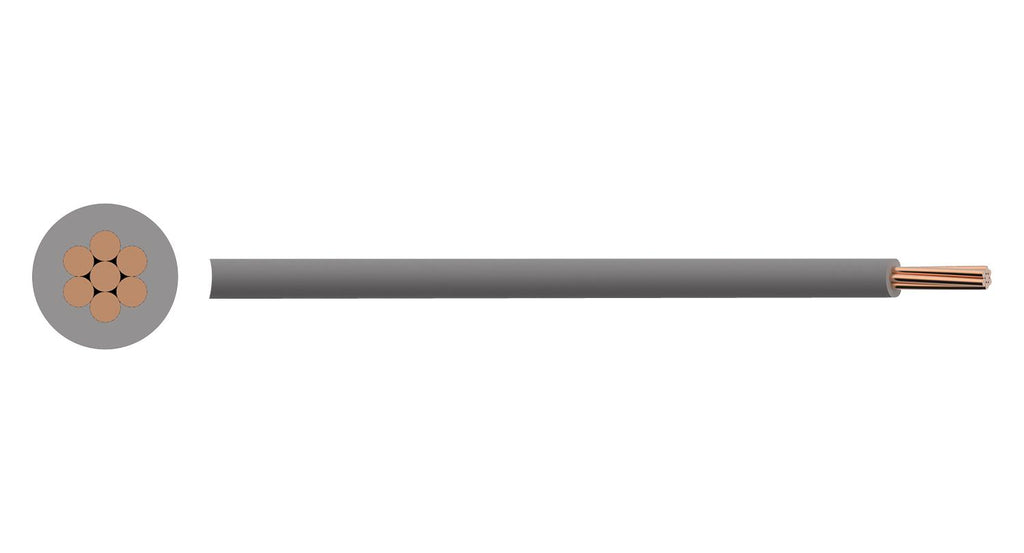

BASEC Approved 6491B 1.5mm² Single Core LSZH Conduit Wiring Cable – Low Smoke, Zero Halogen
The 6491B 1.5mm² Single Core Insulated LSZH Conduit Wiring Cable is designed for use in trunking, conduit, and fixed protected installations. With Low Smoke Zero Halogen (LSZH) insulation, this cable is ideal for environments where reducing fire risks, smoke emission, and toxic fumes is critical, such as public buildings, commercial spaces, and transportation networks.
- Fire-Safe Design: LSZH insulation reduces smoke and corrosive gas emissions, enhancing safety in fire conditions.
- Versatile Applications: Suitable for use in conduit, trunking, and protected fixed installations.
- Durable & Heat Resistant: Thermosetting EI5 insulation provides improved heat resistance up to 90°C.
- Certified & Compliant: Manufactured to BS7211 for assured quality and fire safety compliance.
- Reliable Conductor: Class 2 stranded plain copper conductor ensures excellent conductivity.
- Voltage Rating: 450/750V for a wide range of electrical installations.
- Temperature Rating: Operates between 0°C and +90°C, making it suitable for high-temperature environments.
Technical Specification
- Cable Type: 6491B Single Core LSZH Insulated Cable
- Conductor Size: 1.5mm²
- Conductor Type: Class 2 stranded plain copper
- Voltage Rating: 450/750V
- Temperature Rating: 0°C to +90°C
- Insulation Material: Low Smoke Zero Halogen (LSZH)
- Outer Sheath Colour: Grey
- Standards Compliance: BS7211, BASEC Approved
