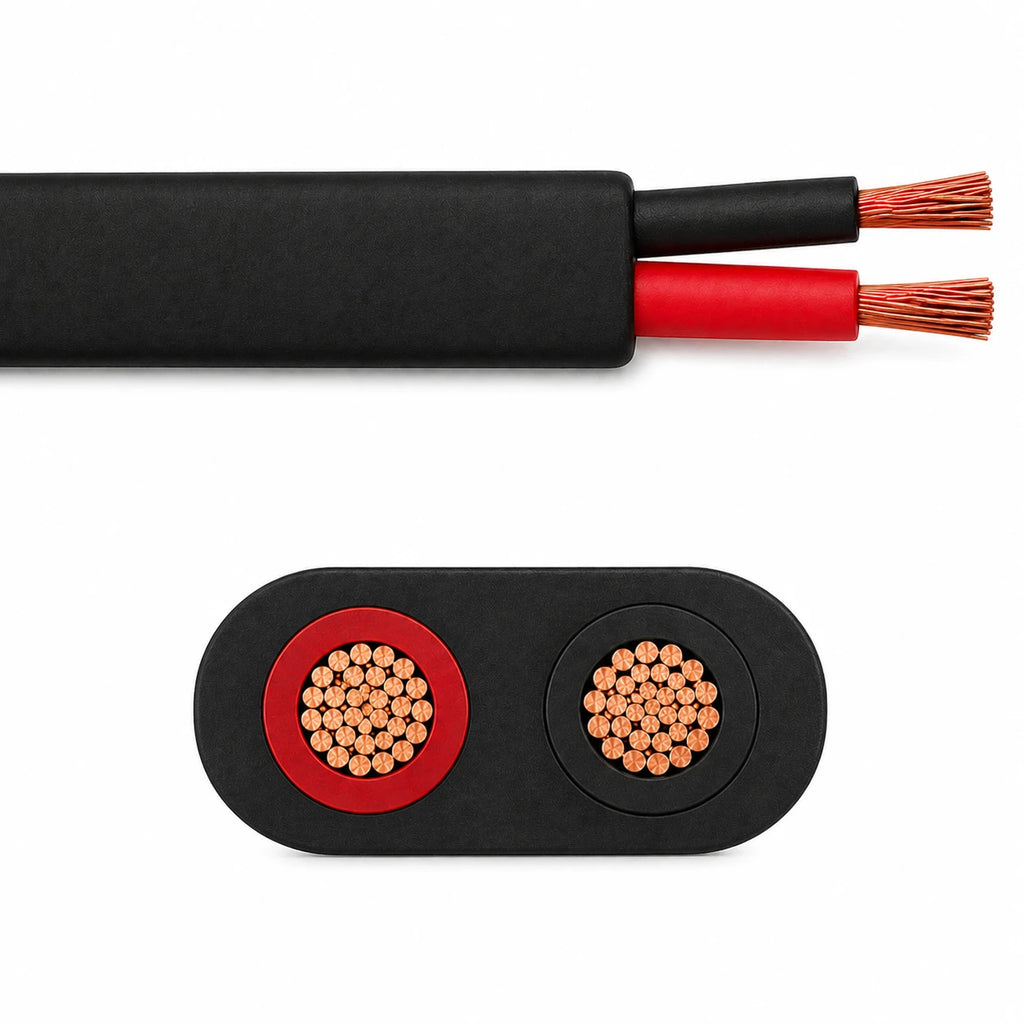

Flat Twin Core 2 x 0.5mm² Thin Wall Auto Cable is a low-voltage electrical wire designed for use in automotive, marine, campervan, and caravan applications.
Key Specifications
Cable Size / Cross-Section: 2 x 0.5mm² (20 AWG)x
Current Rating: Up to 11 Amps per core
Voltage Rating: Suitable for 12V and 24V systems (maximum 60V)
Conductor Specification: 2 x 16/0.20mm stranded plain copper (BS EN 60228:2005)
Core Colors: Red and Black (for easy polarity identification)

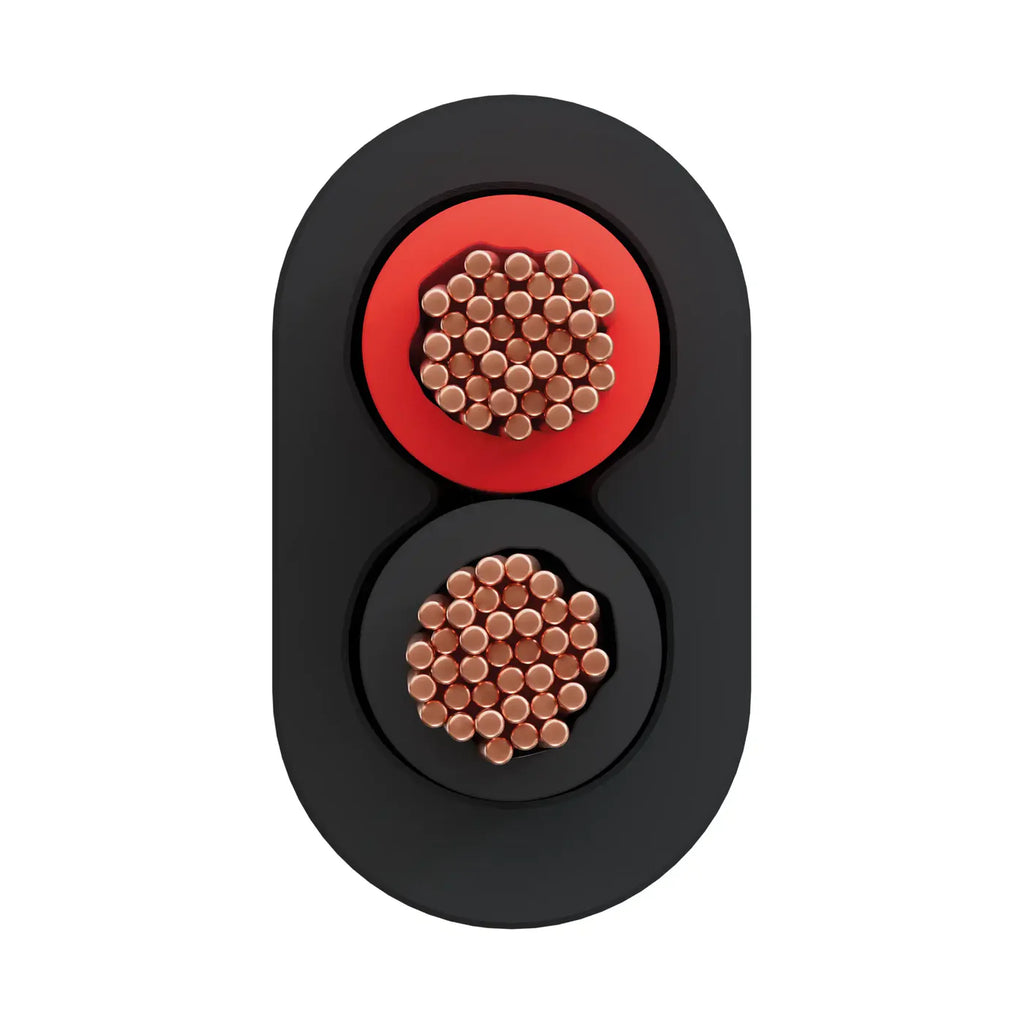

Outer Profile: Flat twin configuration with a black outer sheath
Overall Dimensions: Approximately 2.7mm x 4.6mm to 3.5mm x 5.5mm (depending on the manufacturer)
Temperature Range: –40°C to +105°C (with short excursions up to +120°C)
Features & Benefits
Thin Wall Insulation: Hard-grade thermoplastic PVC insulation reduces the overall diameter and weight compared to standard old-fashioned thick-wall cables, making it much easier to route through tight spaces and looms.
Chemical & Environmental Resistance: Built to resist petrol, diesel, lubricating oils, moisture, and diluted acids.
Versatile Use: Ideal for low-current applications such as LED lighting, sensors, small accessory wiring, and car or marine electrical installations.
