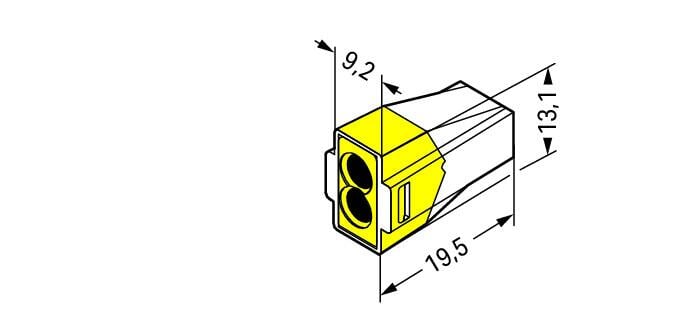

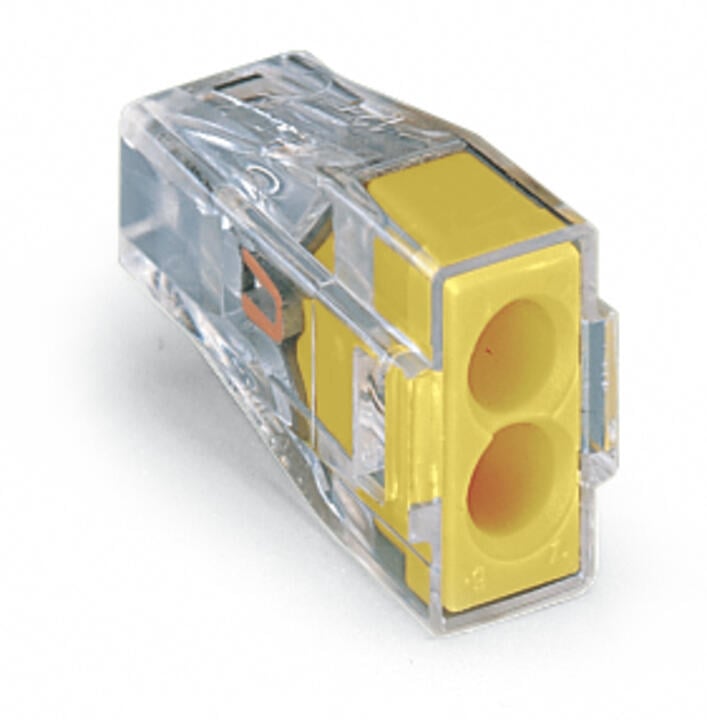

Wago 773-102 Transparent 2-Pole Push Wire Connector With Yellow Cover for Junction Boxes (Pack of 100)
The Wago 773-102 Push Wire Connector provides a quick and reliable solution for junction box connections. Designed for ease of use, it supports both solid and stranded cores, ensuring a secure and efficient installation.
- 2-Conductor Terminal Block: Suitable for quick and secure connections in junction boxes.
- Compact and Transparent Design: Allows visual inspection of wire insertion for added reliability.
- PUSH WIRE® Technology: Enables effortless and secure termination of conductors.
Specifications
-
Conductor Sizes:
- Solid Core: 0.75mm² - 2.5mm²
- Stranded Core: 1.5mm² - 2.5mm²
- Current Rating: 24A
- Voltage Rating: 400V / 4KV
| Ean Code | 4044918397537 |
| Product | Connector |
| Type | Push On |
| Colour | Transparent |
| Current Rating | 24 A |
| Pack Quantity | 100 |
| Voltage (max) | 400 V |
| Cable Size Range | 0.75 - 2.5 mm |
| Current Rating (max) | 24 A |
