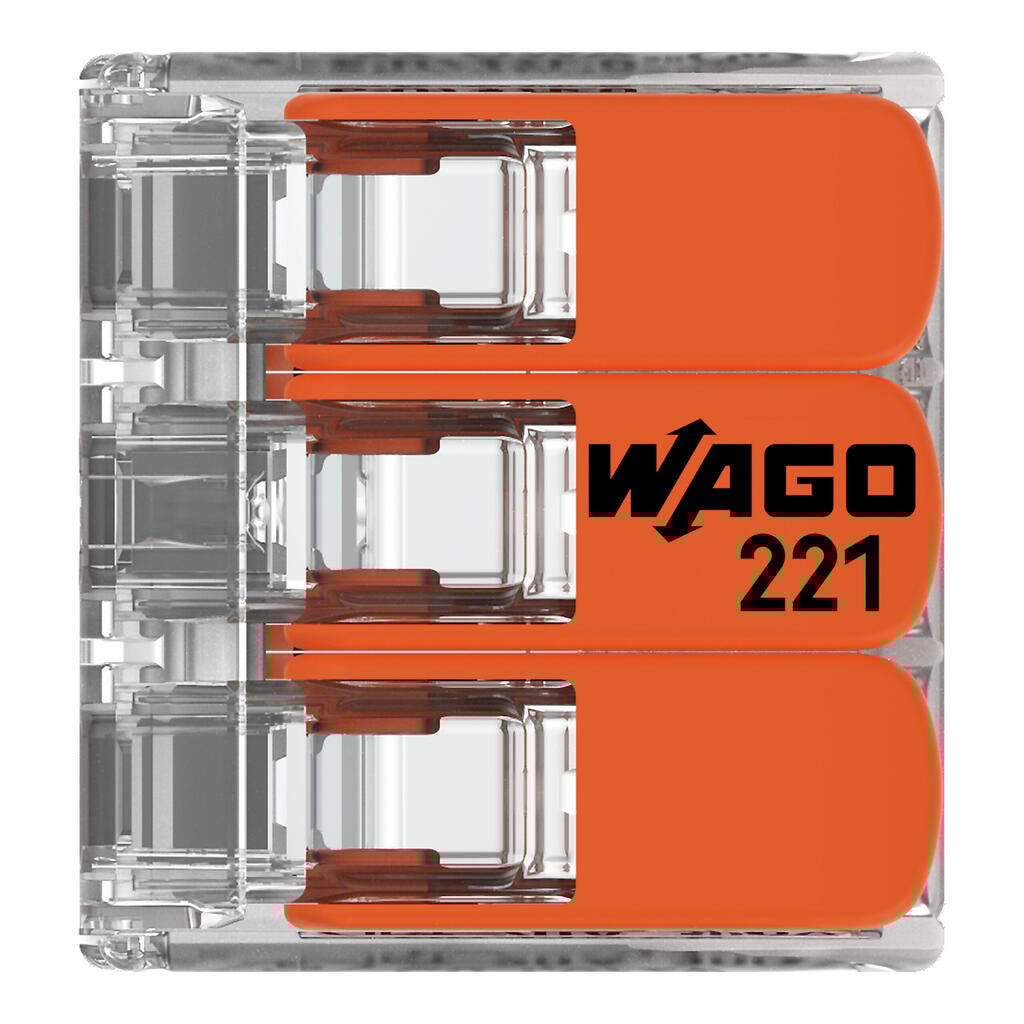

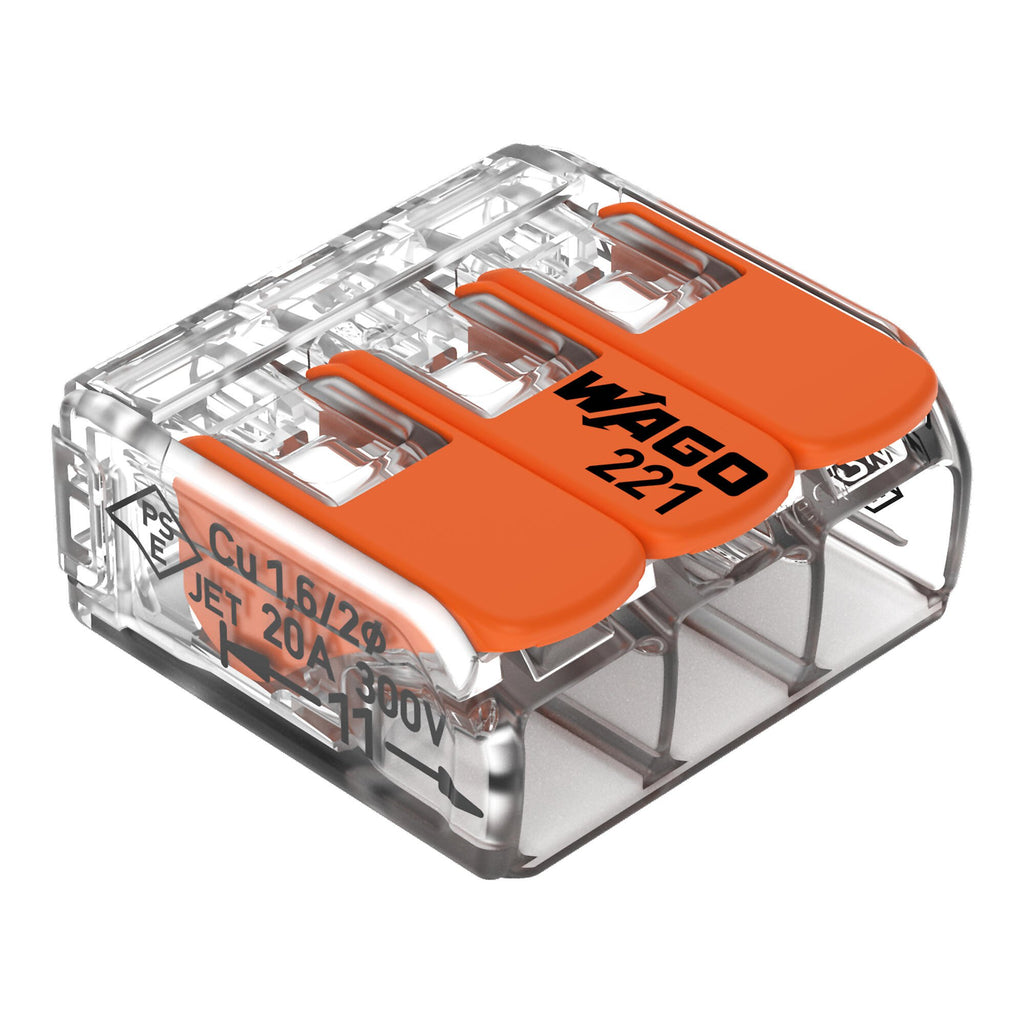

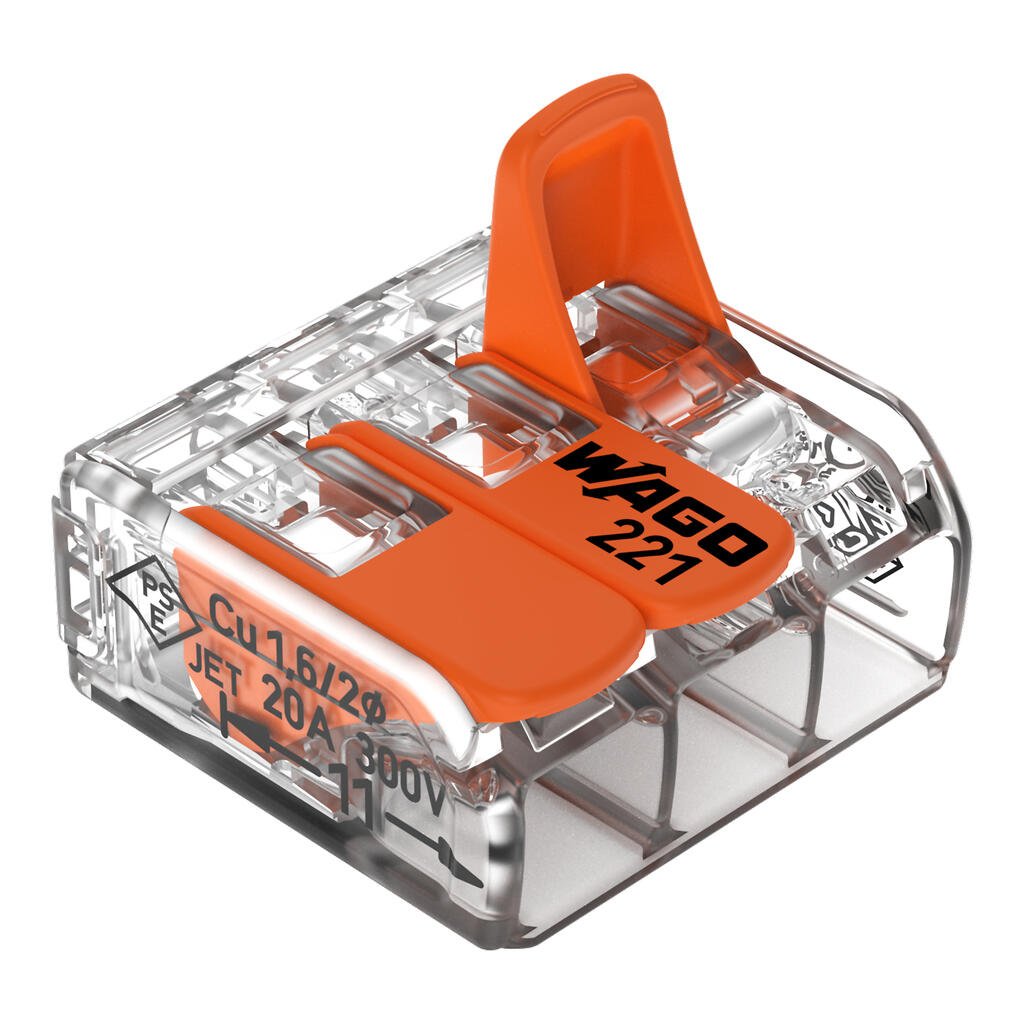

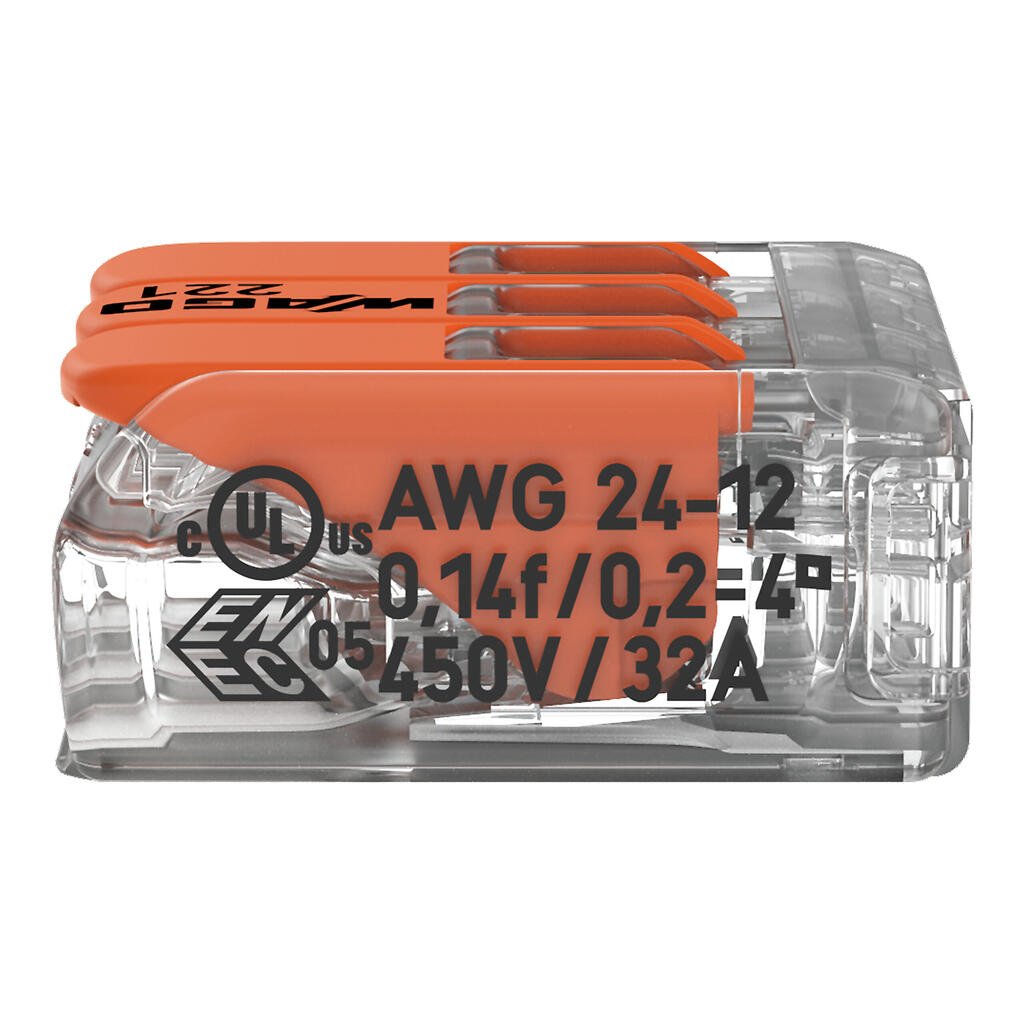

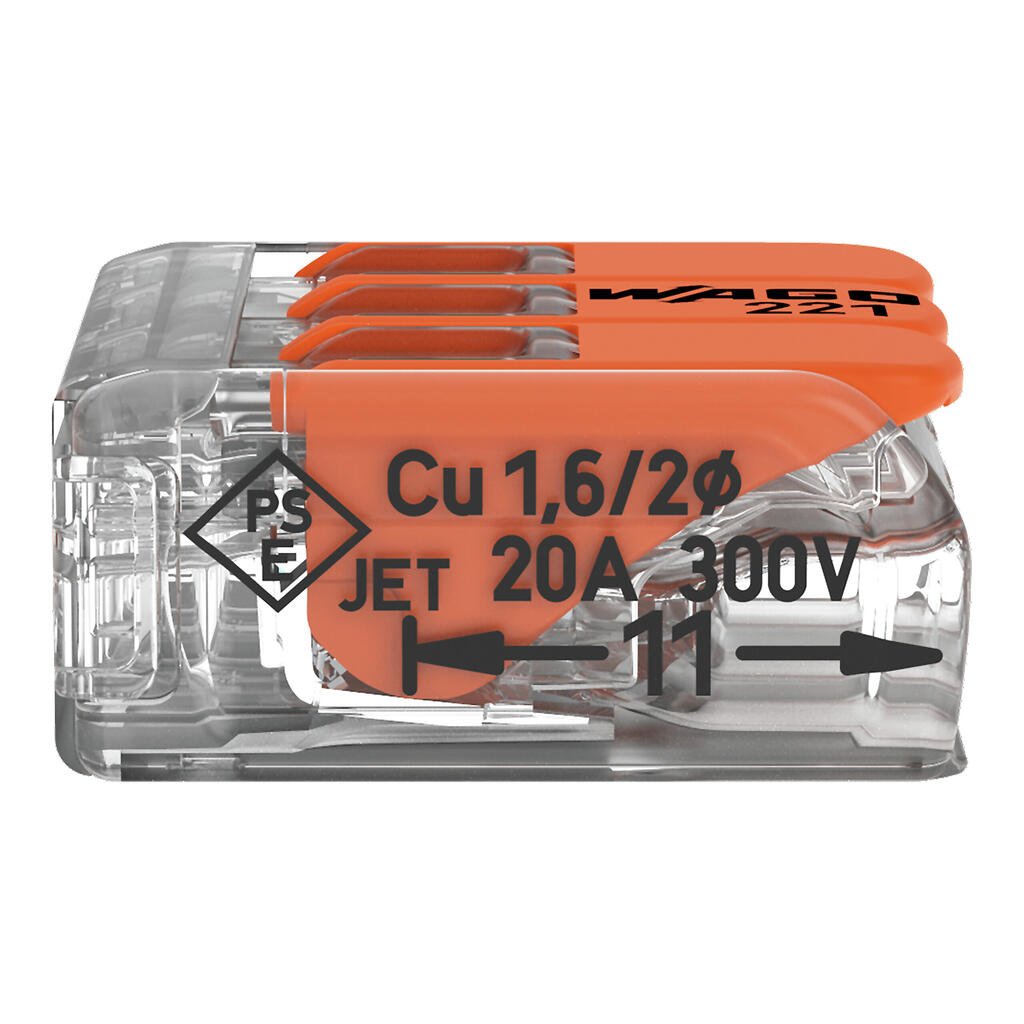

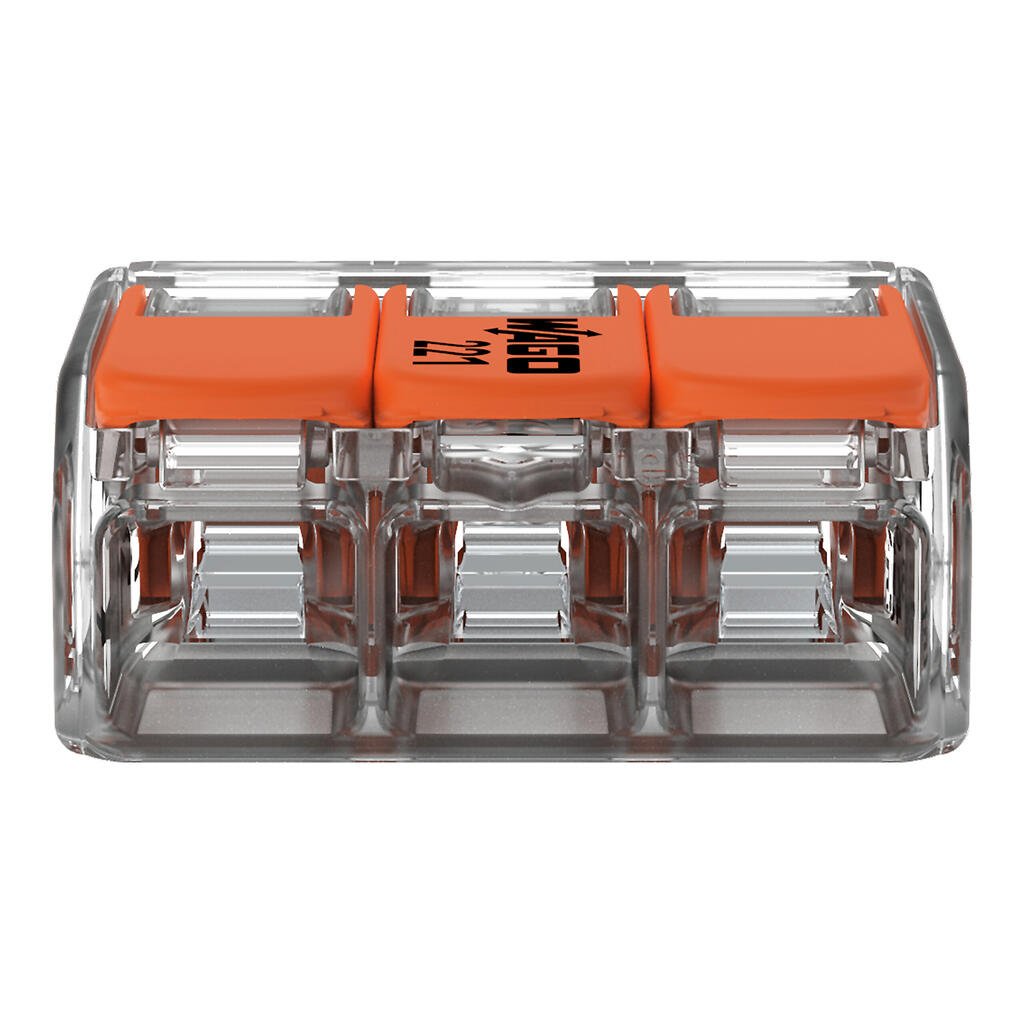

Wago 221-413 Transparent 3-Pole Compact Lever Operated Connector with CAGE CLAMP – Pack of 50
The Wago 221-413 offers a compact and versatile solution for connecting solid and stranded cables up to 4 mm². With its transparent housing, lever operation, and advanced CAGE CLAMP technology, this connector ensures quick, secure, and reliable wiring for various applications.
- Compact and Space-Saving: Up to 40% smaller than the original WAGO 222, requiring less installation space.
- Transparent Design: Enables visual inspection to confirm wires are inserted and stripped correctly.
- Wide Compatibility: Supports solid, stranded, and fine-stranded wires ranging from 0.14 to 4 mm².
- High Performance: Rated for up to 32A/450V and a maximum continuous operating temperature of 105°C.
- Easy Termination: Reduced operating force simplifies wire connections.
- User-Friendly Testing: Equipped with two test ports compatible with standard test probes.
Technical Specifications
- Connection Type: Lever-operated with CAGE CLAMP® technology
- Number of Poles: 3
- Voltage Rating: 450V
- Current Rating: 32A
-
Temperature:
- Maximum Continuous Operating Temperature: 105°C
- Ambient Temperature: Up to 85°C
-
Wire Compatibility:
- Stranded: 0.14 – 4 mm²
- Solid/Fine-Stranded: 0.2 – 4 mm²
- Approvals: ENEC, UL – ideal for global applications
| Ean Code | 4050821808442 |
| Product | Connector |
| Type | Lever |
| Colour | Transparent |

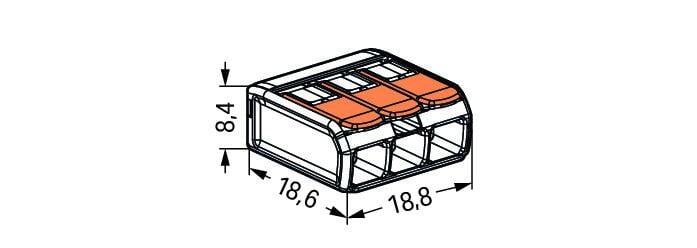

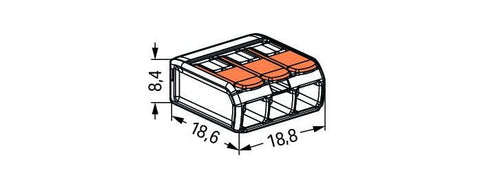

| Length | 18.6 mm |
| Unit Weight | 0.002 kg |
| Width | 18.7 mm |
| Current Rating | 32 A |
| Qualifier | Compact |
| Pack Quantity | 50 |
| Voltage (max) | 450 V |
| Terminal Material | Copper |
| Cable Size Range | 4Sq mm mm2 |
| Current Rating (max) | 32 A |
| Insulation Colour | Clear |
