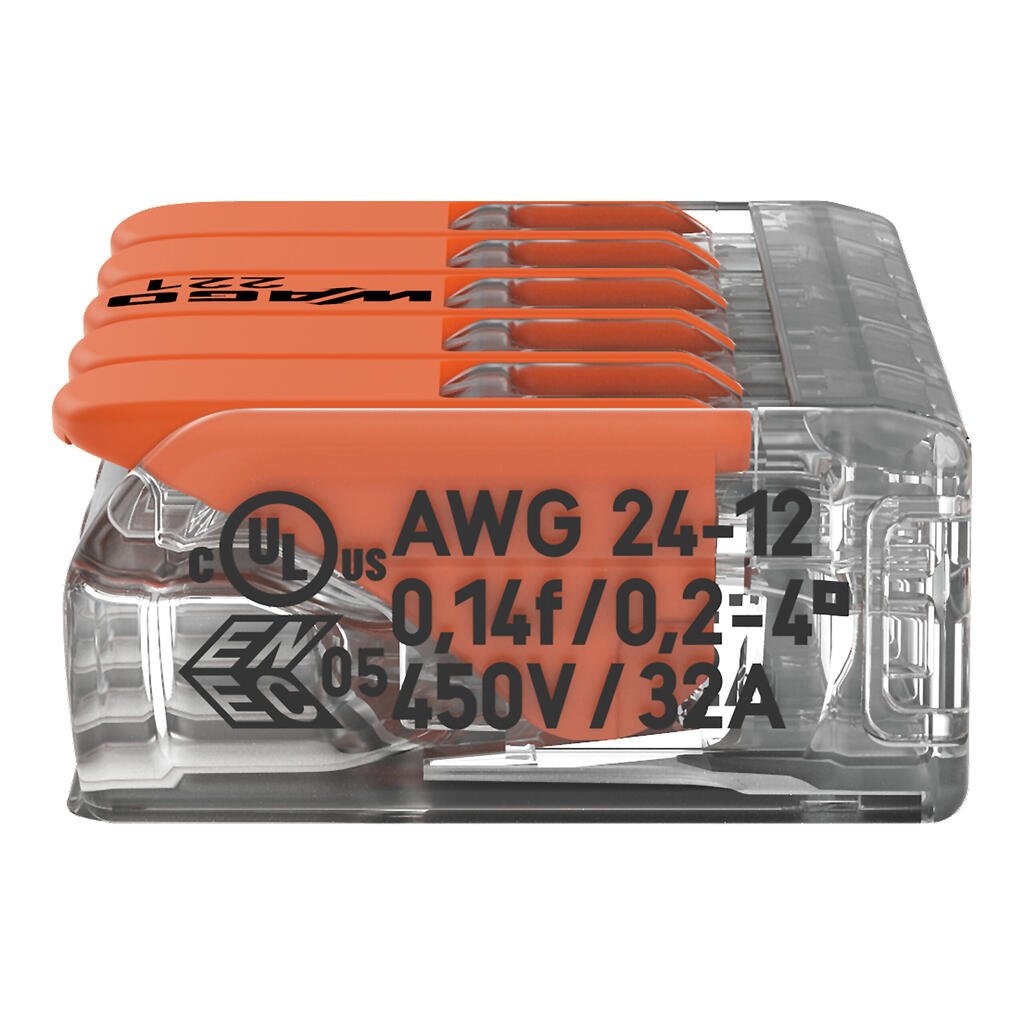

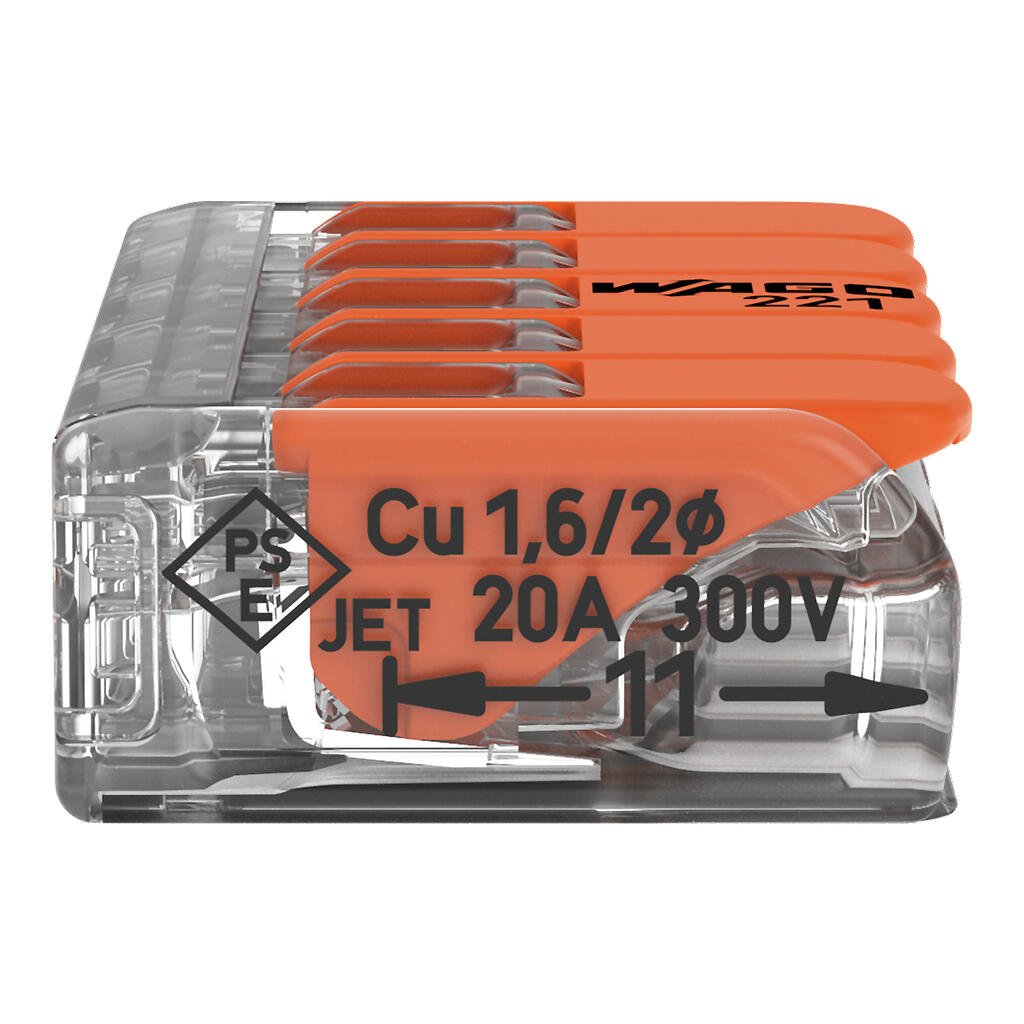

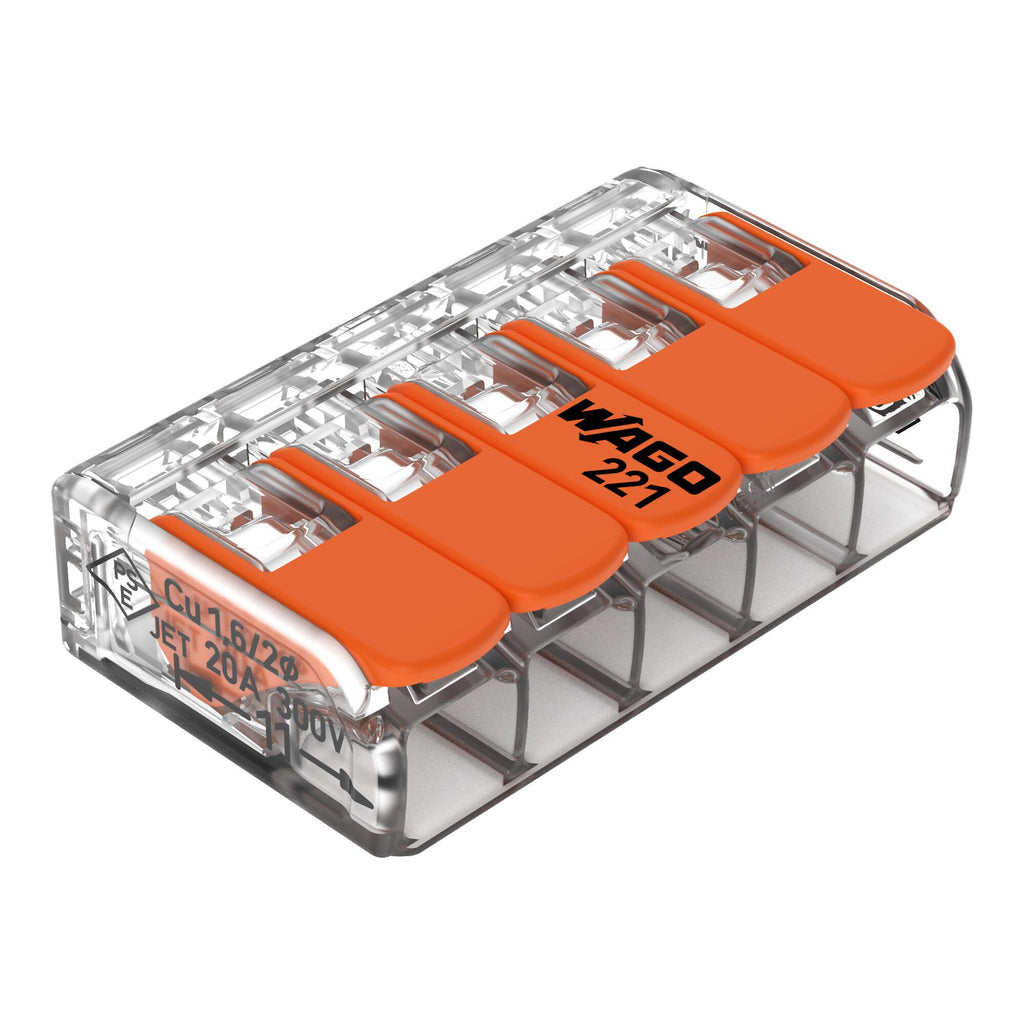

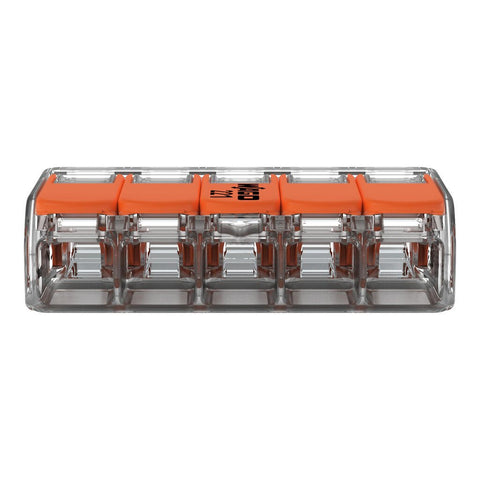

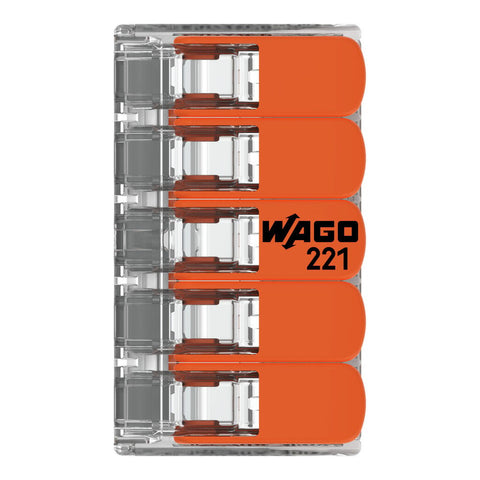

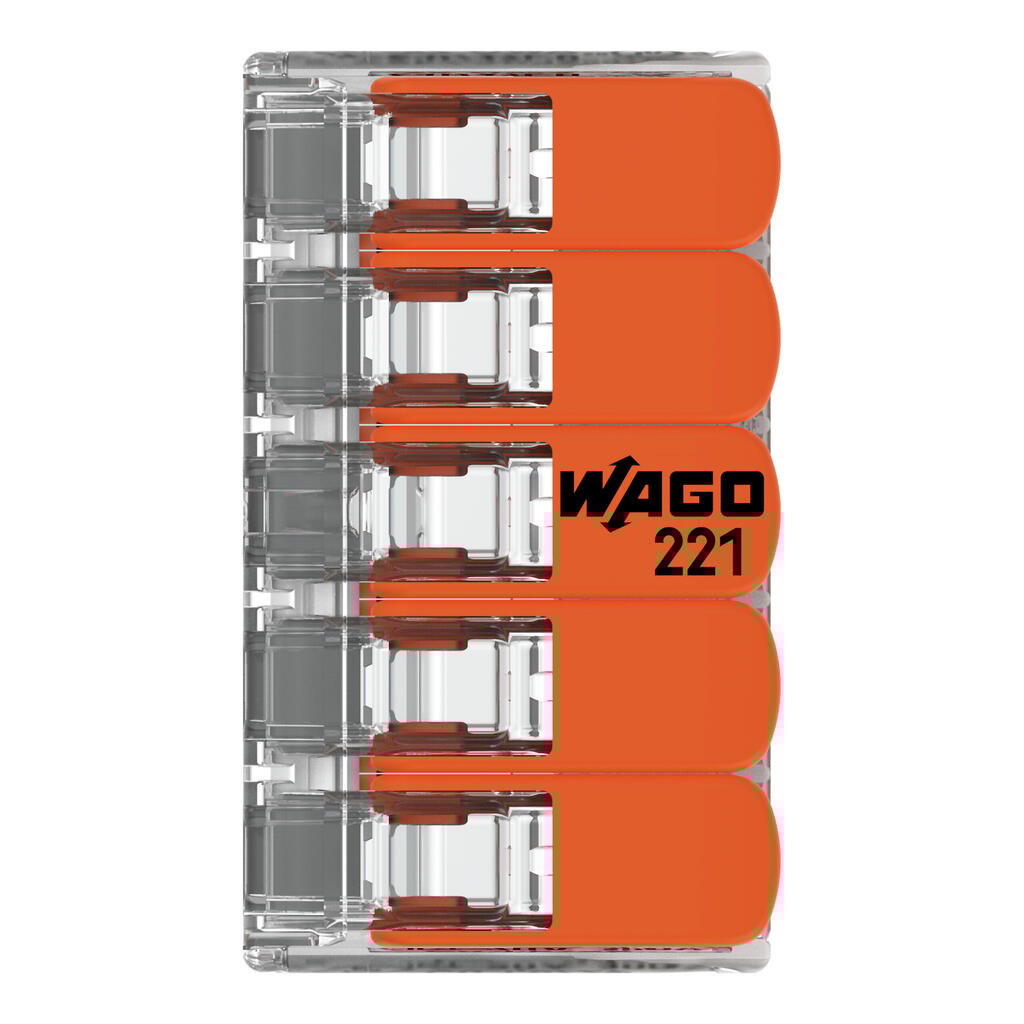

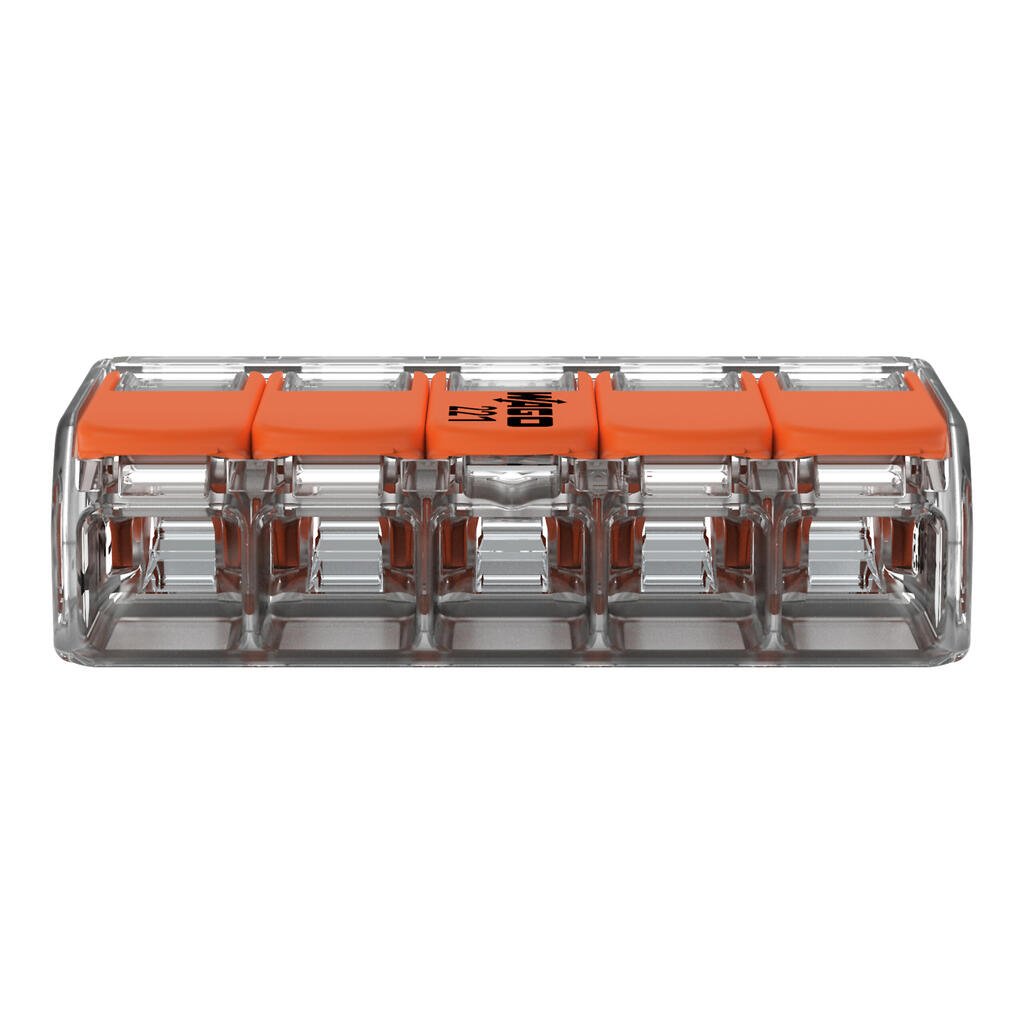

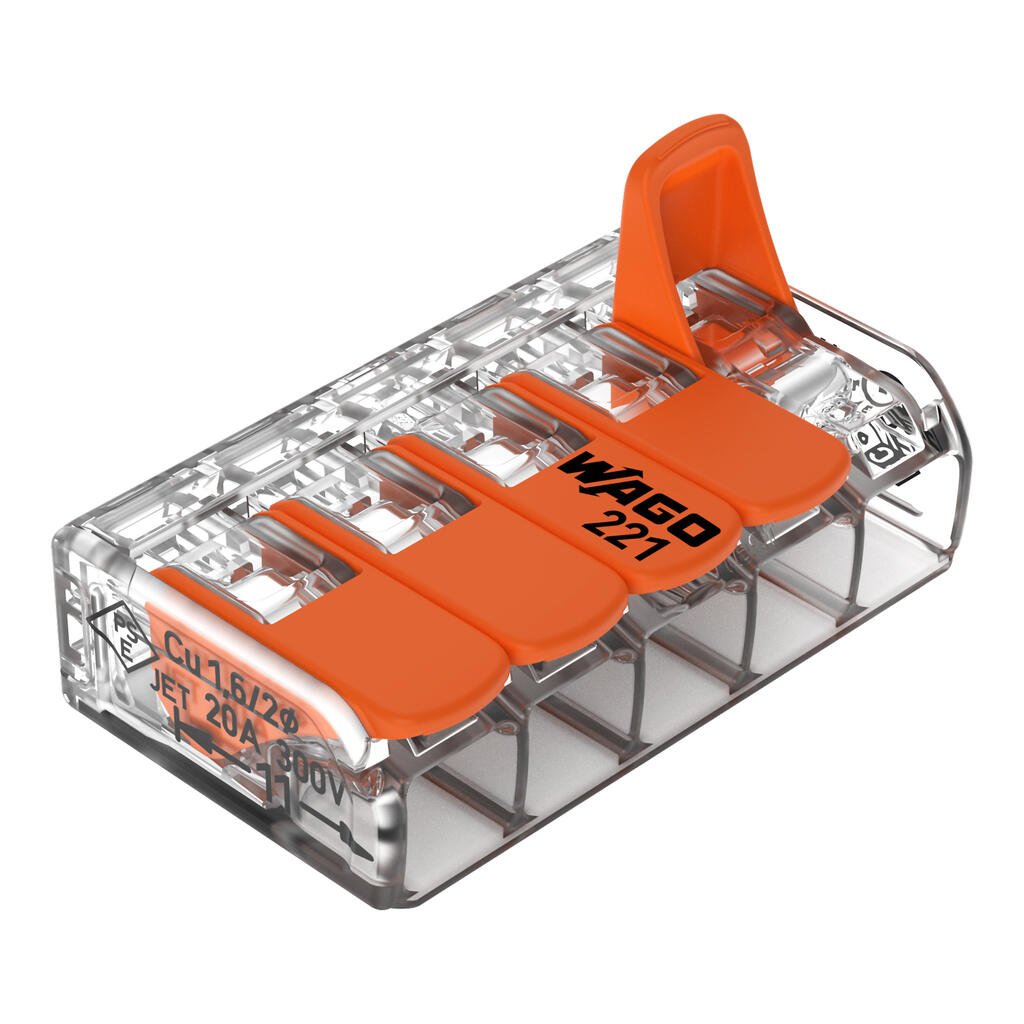

Wago 221-415 Transparent 5-Pole Compact Lever Operated Connector with CAGE CLAMP – Pack of 25
The Wago 221-415 is a compact and versatile connector designed to handle solid and stranded cables up to 4 mm². Featuring transparent housing and advanced CAGE CLAMP technology, this 5-pole connector ensures secure and reliable wiring for diverse applications.
- Compact Design: 40% smaller than the original WAGO 222, saving valuable installation space.
- Transparent Housing: Allows visual confirmation of proper wire insertion and stripping.
- Wide Compatibility: Connects solid, stranded, and fine-stranded wires from 0.14 to 4 mm².
- High Performance: Rated for 32A/450V and operates at ambient temperatures up to 85°C.
- Ease of Use: Reduced operating force for effortless wire termination.
- Testing Convenience: Equipped with two test ports compatible with standard probes.
Technical Specifications
- Connection Type: Lever-operated with CAGE CLAMP® technology
- Number of Poles: 5
- Voltage Rating: 450V
- Current Rating: 32A
-
Temperature:
- Maximum Continuous Operating Temperature: 105°C
- Ambient Temperature: Up to 85°C
-
Wire Compatibility:
- Stranded: 0.14 – 4 mm²
- Solid/Fine-Stranded: 0.2 – 4 mm²
- Approvals: ENEC, UL – suitable for global applications
| Ean Code | 4055143234658 |
| Product | Connector |
| Type | Lever |
| Colour | Transparent |

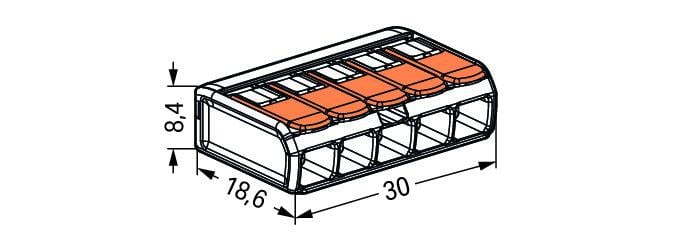

| Length | 18.6 mm |
| Unit Weight | 0.004 kg |
| Width | 29.9 mm |
| Current Rating | 32 A |
| Qualifier | Compact |
| Pack Quantity | 25 |
| Voltage (max) | 450 V |
| Terminal Material | Copper |
| Cable Size Range | 4Sq mm mm2 |
| Current Rating (max) | 32 A |
| Insulation Colour | Clear |
