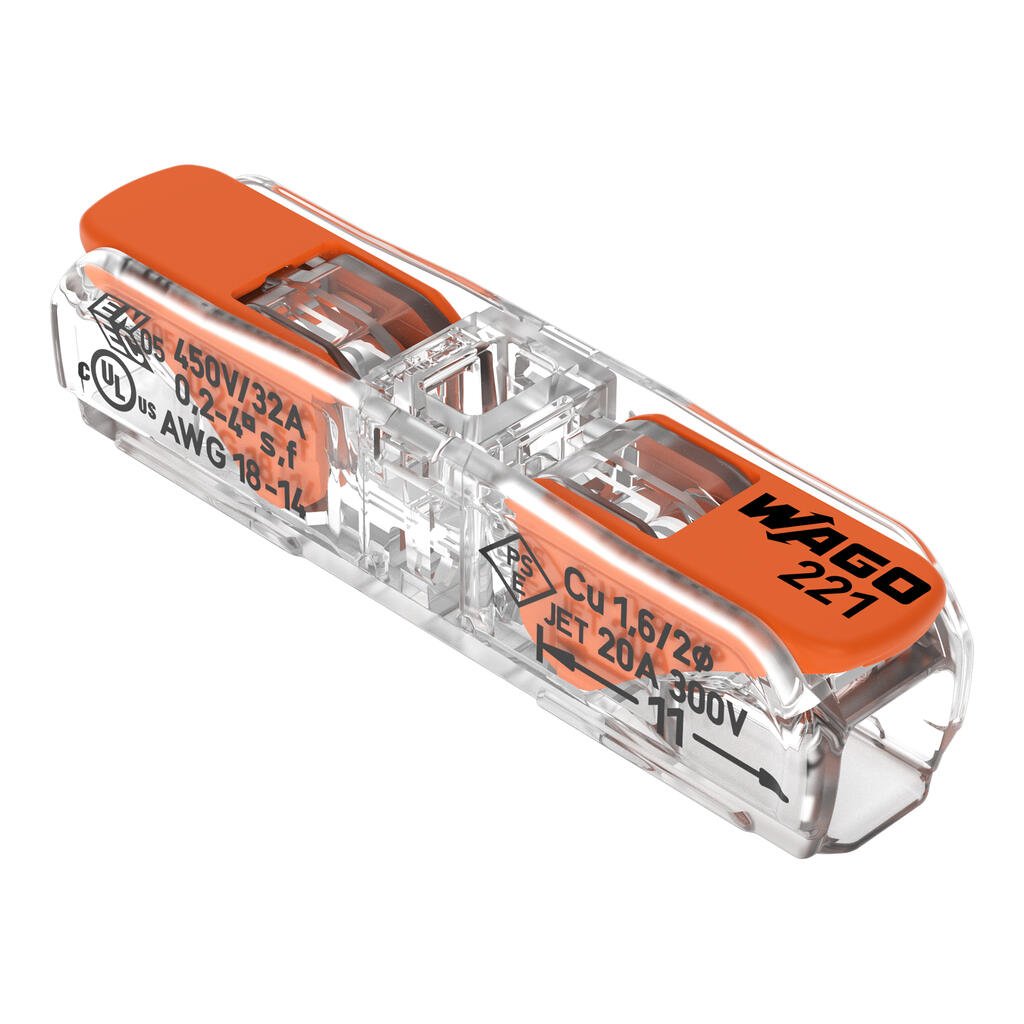

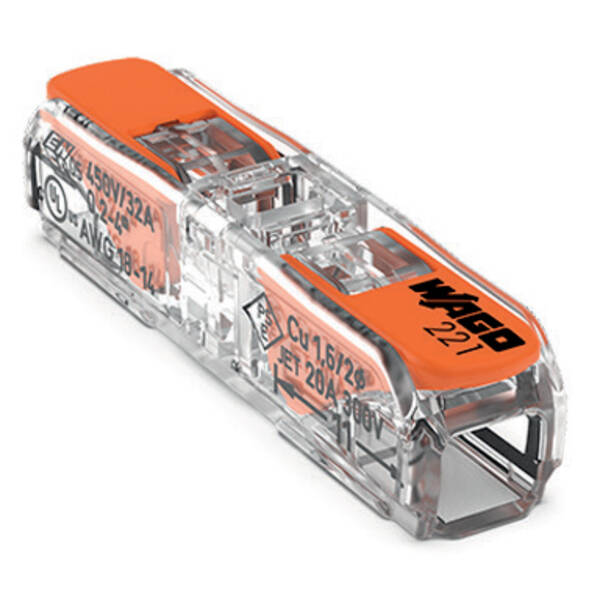

Wago 221-2411 Inline Transparent Splicing Connector with Lever & CAGE CLAMP – Pack of 60
The Wago 221-2411 Inline Splicing Connector is the perfect solution for secure and efficient cable connections. Its transparent housing and lever design ensure reliable performance, making it ideal for various applications. Compatible with all conductor types up to 4 mm², this connector is designed for ease of use and precise connections.
- Transparent Housing: Ensures clear visibility for perfect connections every time.
- Lever Design: Simplifies the splicing process for solid and stranded cables.
- CAGE CLAMP® Technology: Provides secure and vibration-proof connections.
- Versatile Compatibility: Works with solid and stranded copper cables.
- Mounting Carrier Compatible: Fits into Wago mounting carriers (1–5 module units).
Technical Specifications
- Voltage Rating: 450V (EN 60664), 600V (UL Use Group C)
- Current Rating: 32A (EN 60664), 20A (UL Use Group C)
- Surge Voltage: 4kV
- Connection Points: 2
-
Cable Compatibility:
- Solid Conductor: 0.2 – 4 mm²
- Stranded Conductor: 0.2 – 2.5 mm²
-

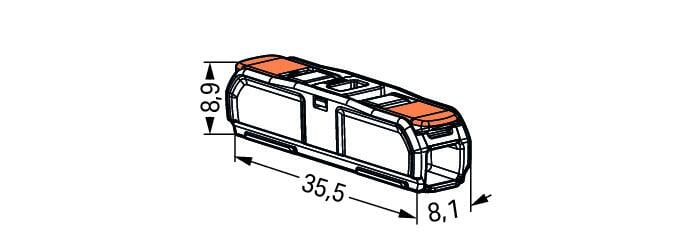

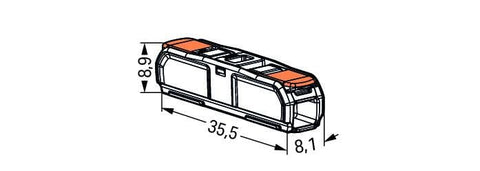

Dimensions:
- Width: 8.1 mm
- Height: 8.9 mm
- Depth: 35.5 mm
- Material Compatibility: Copper
| Ean Code | 4055144049404 |
| Product | Connector |
| Type | Lever |
| Colour | Transparent |
| Current Rating | 32 A |
| Pack Quantity | 60 |
| Cable Size Range | 0.2-4mm2 |
| Current Rating (max) | 32 A |
