Wago 221 Series Splicing Connector – Sustainable Variant
Wago has reimagined their iconic 221 Series Splicing Connector, integrating sustainability into electrical installations. This innovative variant is made with partially bio-circular and recycled plastics, reducing reliance on fossil resources and keeping existing materials in circulation – making a positive environmental impact from the very first connection.
- Eco-Friendly Design: Plastics derived from post-consumer recycled materials, including PET bottles, and bio-based recyclables.
- Versatile Conductor Compatibility: Accommodates stranded wires (0.14–4 mm²) and solid/fine-stranded wires (0.2–4 mm²).
- High Performance: Rated up to 32A/450V with a continuous operating temperature of 105°C and ambient temperature up to 85°C.

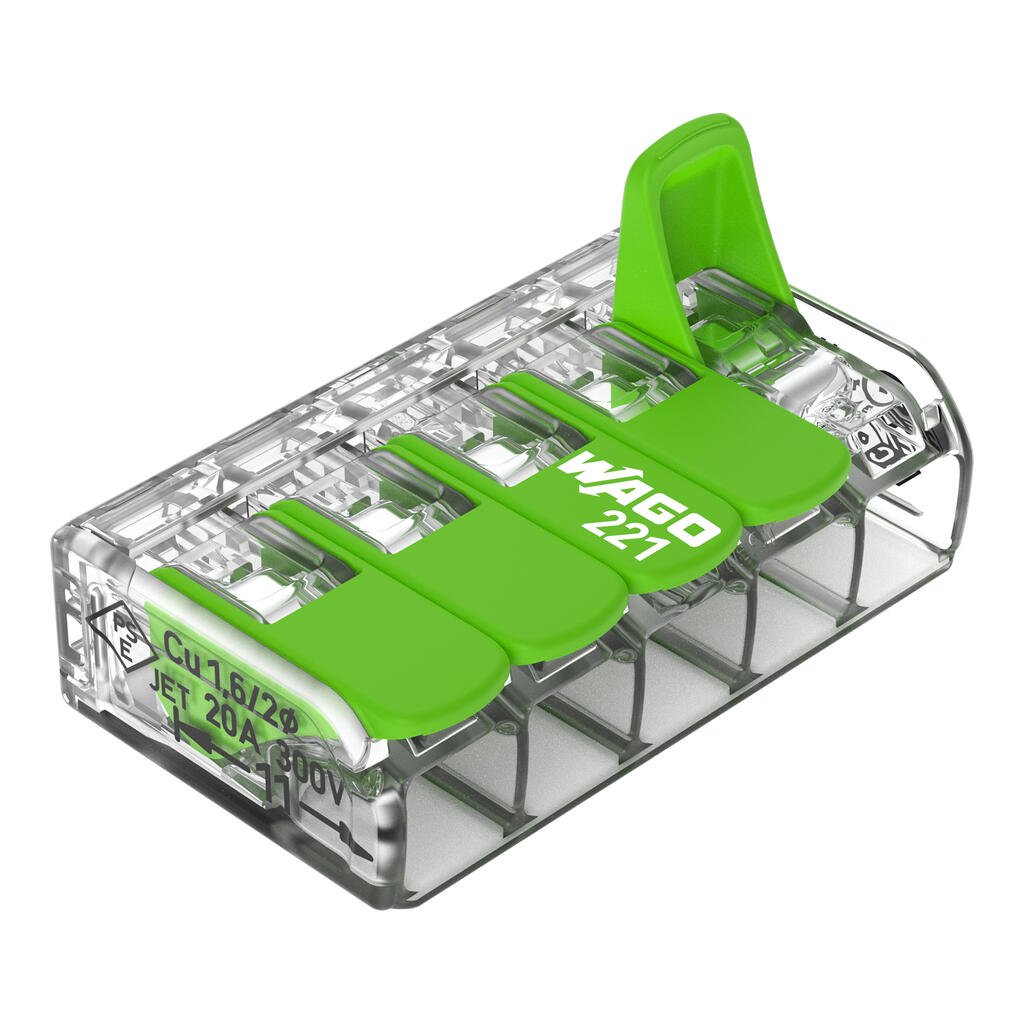

- Ease of Use: Lever-operated mechanism ensures quick and reliable terminations.
- Available Configurations: 2-, 3-, and 5-wire connectors for versatile applications.
- Wide Application Range: Suitable for small and large loads, including devices with high power consumption.
Technical Specifications
- Connection Type: Lever Operated
- Voltage Rating: 450V
- Current Rating: 32A
- Material: Partially bio-circular and recycled plastics
-
Wire Compatibility:
- Solid: 0.2–4 mm²
- Stranded: 0.14–4 mm²
- Operating Temperature: Up to 105°C

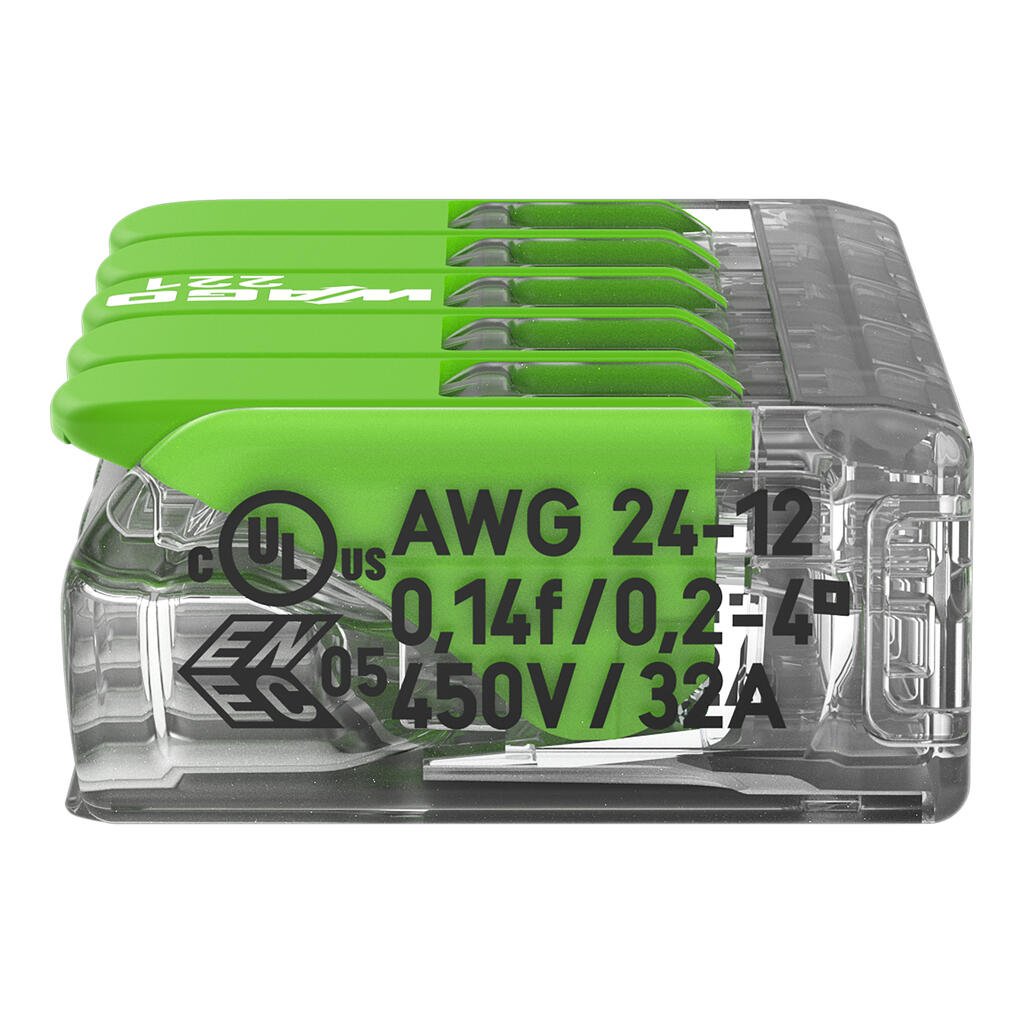

- Certifications: ENEC and UL-certified
| Product | Connector |
| Type | Green Clamp |
| Colour | Transparent |

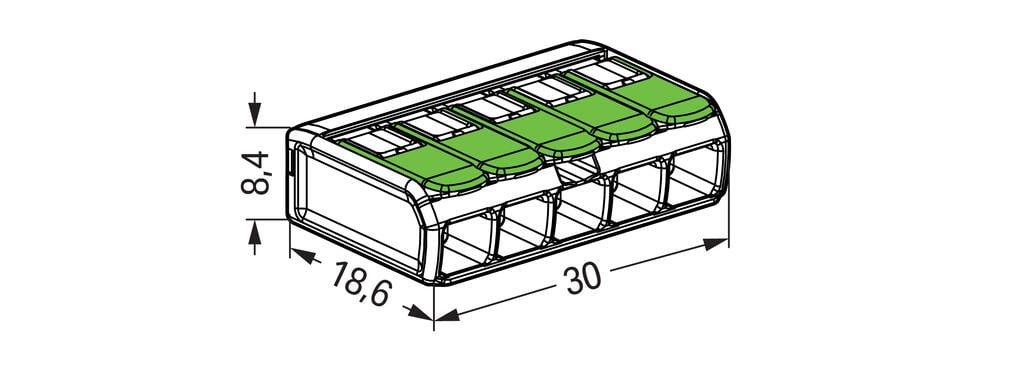

| Length | 18.6 mm |
| Unit Weight | 0.004 kg |
| Width | 29.9 mm |
| Current Rating | 32 A |
| Qualifier | Compact |
| Pack Quantity | 25 |
| Voltage (max) | 450 V |
| Terminal Material | Copper |
| Cable Size Range | 4Sq mm mm2 |
| Current Rating (max) | 32 A |
| Insulation Colour | Clear |
