Wago 222-412 Grey 2 Pole Compact Lever Operated Connector (Pack Size 50)
The Wago 222-412 compact splicing connector offers reliable and efficient wire termination for both solid and stranded wires. With its easy-to-use lever-operated design and durable CAGE CLAMP technology, it ensures secure and gas-tight connections in a compact form factor.
- Lever Operation: Simplifies conductor connection with quick and tool-free operation.
- Wire Compatibility: Supports solid and stranded wires (0.08 mm²–2.5 mm²) and flexible wires (0.08 mm²–4.0 mm²).
- Compact Design: Ideal for space-limited installations.
- Durable Construction: CAGE CLAMP technology ensures long-lasting and secure connections.
- High Performance: Rated for 32A current and 400V/4kV voltage.
Technical Specifications
- Number of Poles: 2
- Wire Types: Solid, Stranded, and Flexible
-
Wire Sizes:
- Solid/Stranded: 0.08 mm²–2.5 mm²
- Flexible: 0.08 mm²–4.0 mm²
- Current Rating: 32A
- Voltage Rating: 400V/4kV
- Maximum Service Temperature: 85°C
| Ean Code | 4050821346470 |
| Product | Connector |
| Type | Lever |
| Colour | Grey |

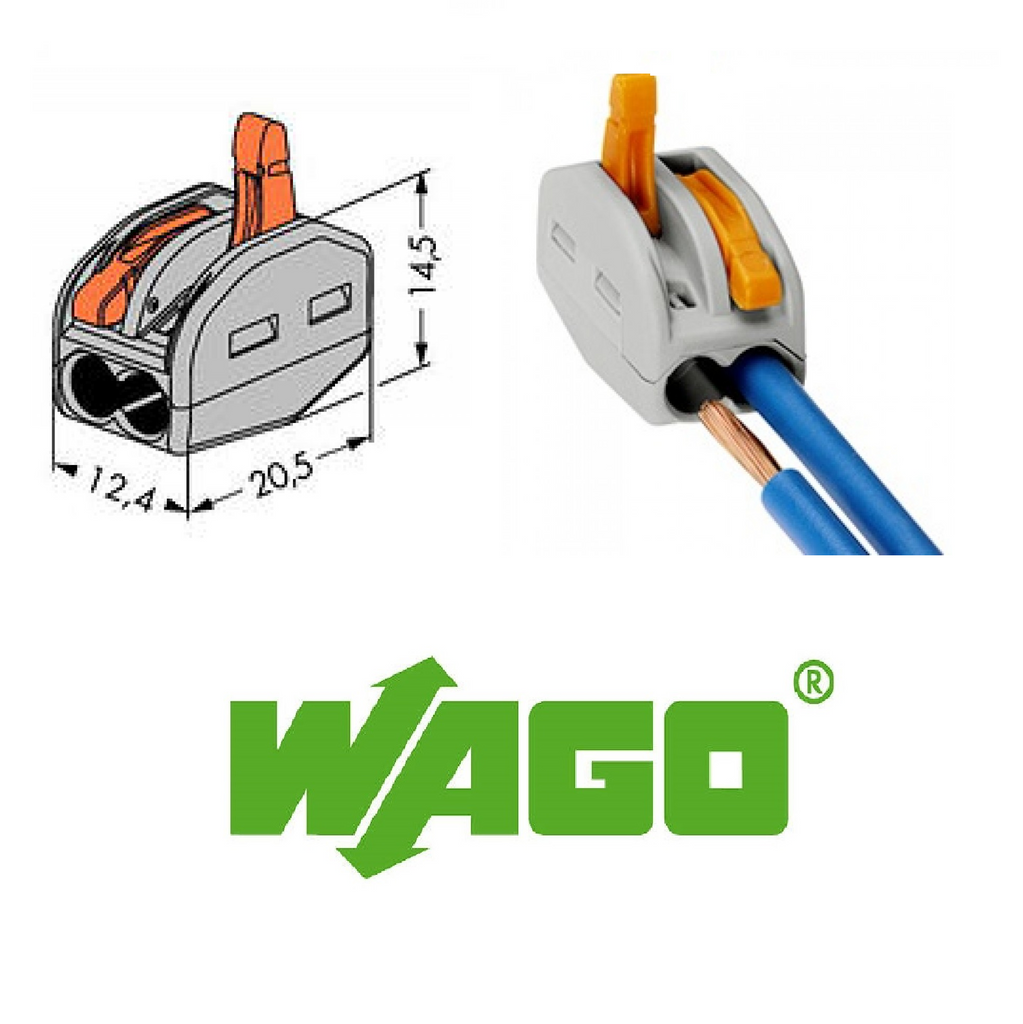

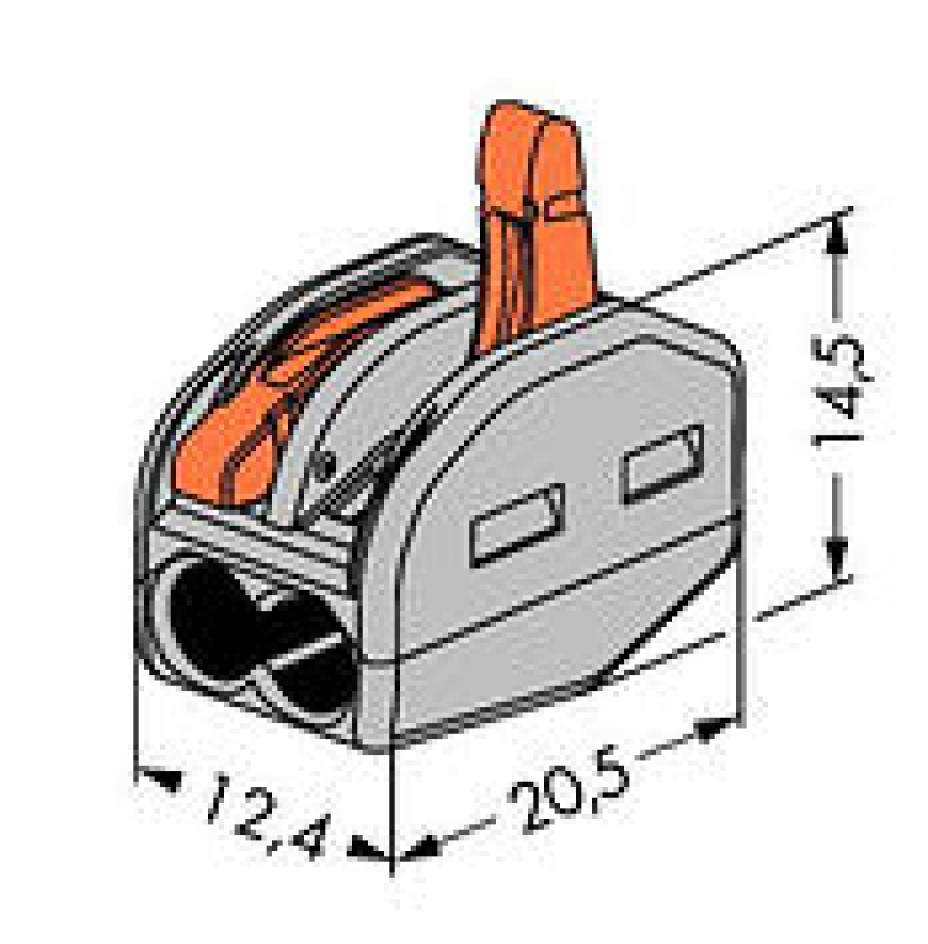

| Length | 12.4 mm |
| Unit Weight | 0.003072 kg |
| Width | 20.5 mm |
| Current Rating | 32 A |
| Pack Quantity | 50 |
| Voltage (max) | 400 V |
| Cable Size Range | 0.2-4mm2 |
| Current Rating (max) | 32 A |
| Insulation Colour | Grey |
