Wago 222-413 Grey 3 Pole Compact Lever Operated Connector (Pack Size 50)
The Wago 222-413 compact splicing connector provides secure and versatile wire connections for both solid and stranded wires. Its lever-operated mechanism ensures easy, tool-free operation while the robust CAGE CLAMP technology delivers reliable performance.
- Lever Operation: Simplifies wire connection with quick, tool-free functionality.
- Wire Compatibility: Handles solid and stranded wires (0.08 mm²–2.5 mm²) and flexible wires (0.08 mm²–4.0 mm²).
- Three Pole Design: Accommodates three conductors in a compact format.
- Durable and Reliable: Ensures gas-tight and long-lasting connections with CAGE CLAMP technology.
- High Capacity: Rated for 32A current and 400V/4kV voltage.
Technical Specifications
- Number of Poles: 3
- Wire Types: Solid, Stranded, and Flexible
-
Wire Sizes:
- Solid/Stranded: 0.08 mm²–2.5 mm²
- Flexible: 0.08 mm²–4.0 mm²
- Current Rating: 32A
- Voltage Rating: 400V/4kV
- Maximum Service Temperature: 85°C
| Ean Code | 4017332955676 |
| Product | Connector |
| Type | Lever |
| Colour | Grey |

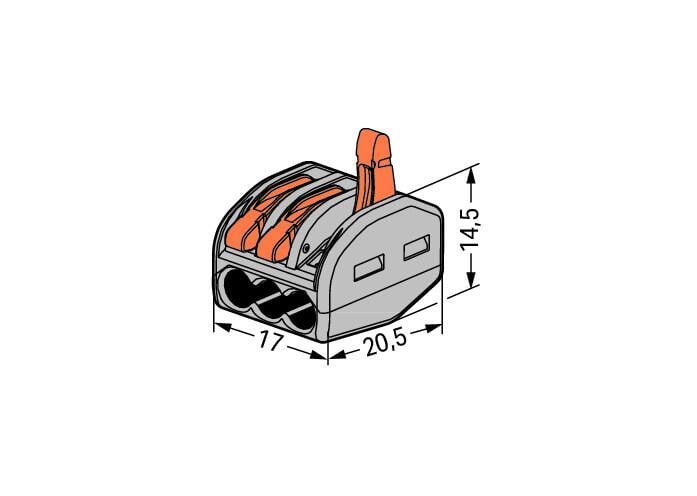

| Length | 14.5 mm |
| Unit Weight | 0.004 kg |
| Width | 20.5 mm |
| Current Rating | 32 A |
| Qualifier | Compact |
| Pack Quantity | 50 |
| Voltage (max) | 400 V |
| Cable Size Range | 0.08 to 2.5Sq mm mm2 |
| Current Rating (max) | 32 A |
| Insulation Colour | Grey |
