Wago 222-415 Grey 5 Pole Compact Lever Operated Connector (Pack Size 40)
The Wago 222-415 compact splicing connector is designed for easy and secure wire connections in electrical installations. With its lever-operated mechanism and robust CAGE CLAMP technology, it accommodates various wire types and ensures reliable, gas-tight connections.
- Lever Operation: Tool-free, quick, and simple wire connection and disconnection.

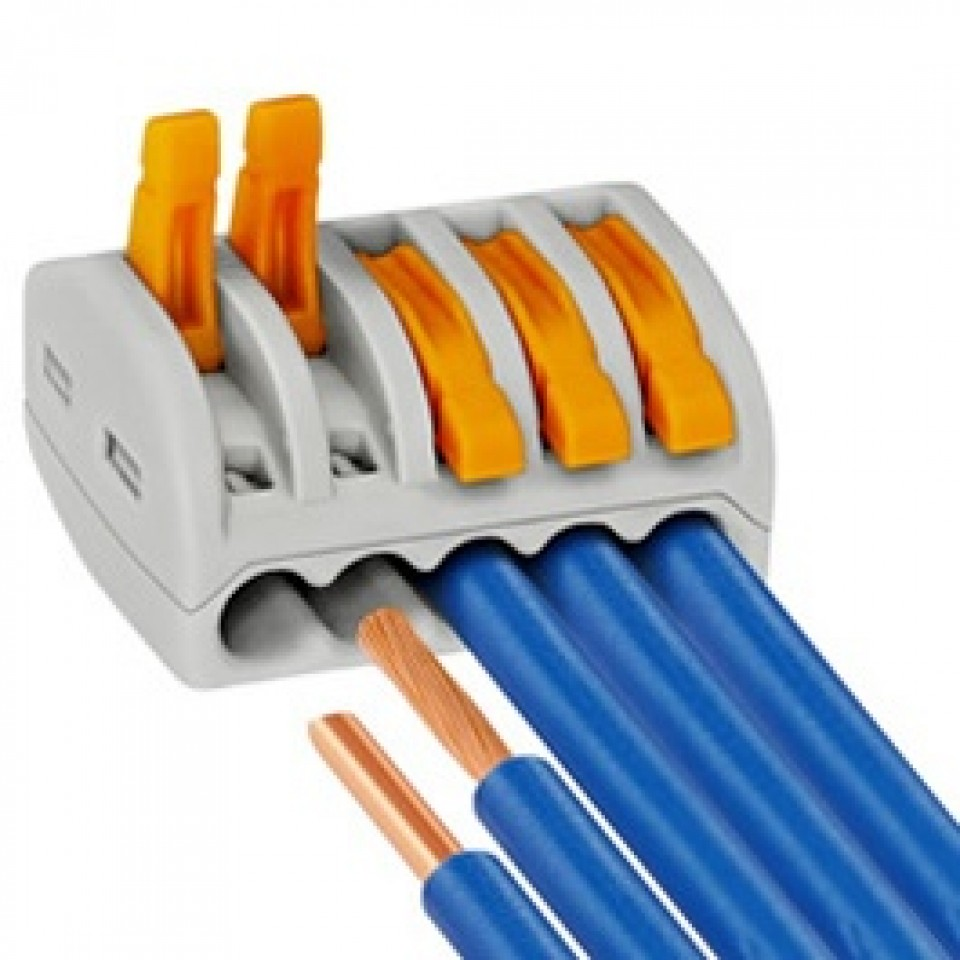

- Wire Compatibility: Handles solid and stranded wires (0.08 mm²–2.5 mm²) and flexible wires (0.08 mm²–4.0 mm²).
- Five Pole Design: Enables connection of up to five conductors in one compact unit.
- Reliable Performance: Gas-tight connections ensure long-term durability and safety.
- High Capacity: Rated for 32A current and 400V/4kV voltage.
Technical Specifications
- Number of Poles: 5
- Wire Types: Solid, Stranded, and Flexible
-
Wire Sizes:
- Solid/Stranded: 0.08 mm²–2.5 mm²
- Flexible: 0.08 mm²–4.0 mm²
- Current Rating: 32A
- Voltage Rating: 400V/4kV
- Maximum Service Temperature: 85°C
| Ean Code | 4044918464956 |
| Product | Connector |
| Type | Lever |
| Colour | Grey |

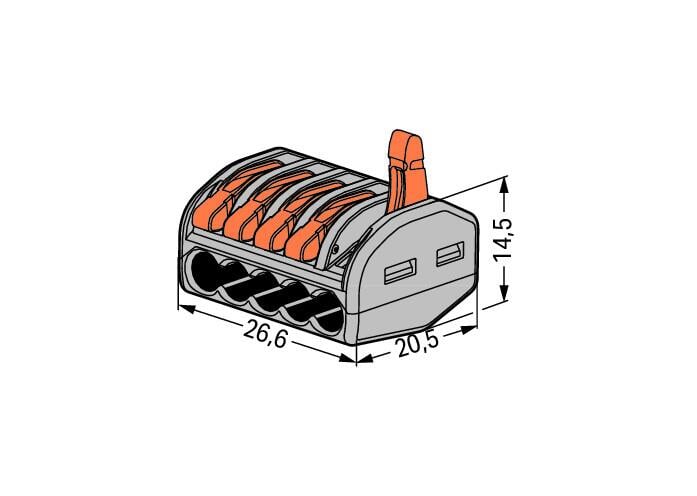

| Length | 26.6 mm |
| Unit Weight | 0.0066 kg |
| Width | 20.5 mm |
| Current Rating | 32 A |
| Pack Quantity | 40 |
| Voltage (max) | 400 V |
| Cable Size Range | 0.2-4mm2 |
| Current Rating (max) | 32 A |
| Insulation Colour | Grey |
