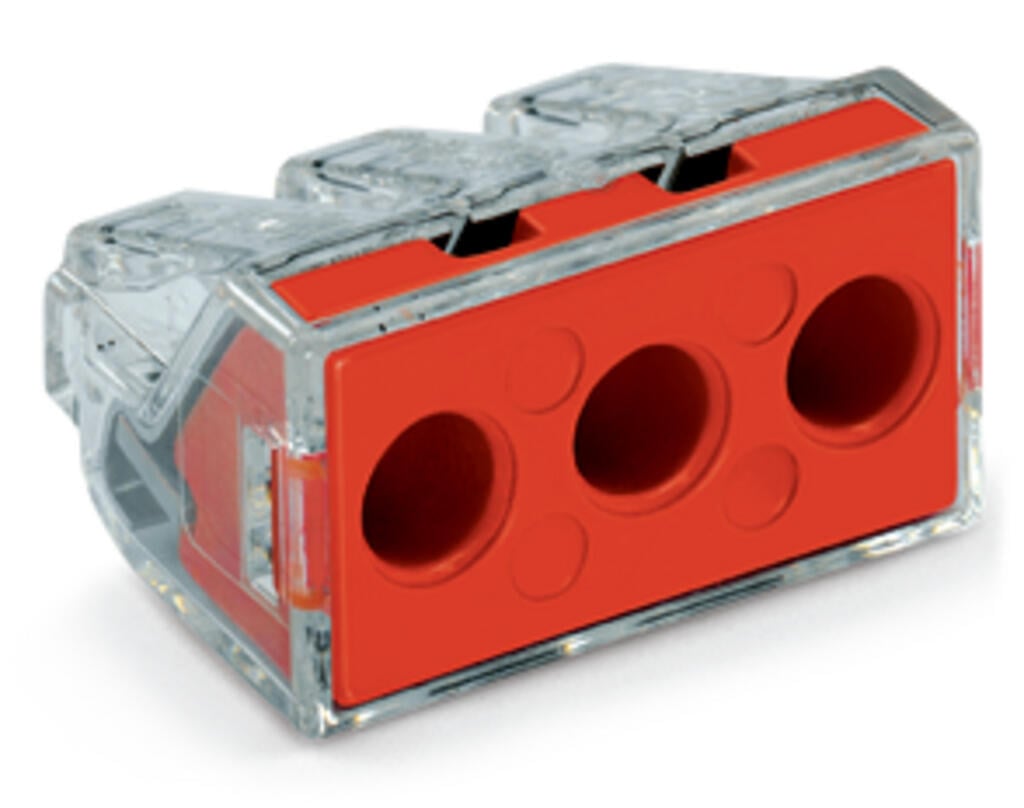

Wago 773-173 PUSH WIRE® 3-Conductor Terminal Block – Transparent Housing, Red Cover
The Wago 773-173 PUSH WIRE® Connector is a high-performance 3-conductor terminal block, designed for quick and secure wiring in junction boxes. Featuring a transparent housing with a red cover, this connector ensures easy inspection of connections, making it a reliable and efficient choice for electrical installations.
- Conductor Compatibility: Suitable for 2.5mm² - 6.0mm² solid core conductors.
- Current Rating: Supports up to 41A for high-performance connections.
- Voltage Rating: Rated for 400V/4KV, ensuring safe and reliable operation.
- Push Wire Technology: Enables fast, tool-free wire insertion for secure connections.
- Transparent Housing: Allows easy visual inspection of wire connections.
- Pack Size: Supplied in a pack of 50 connectors for larger installations.
Technical Specifications
- Model: Wago 773-173
- Conductor Size: 2.5mm² - 6.0mm² (solid core)
- Current Rating: 41A
- Voltage Rating: 400V / 4KV
- Housing Material: Transparent plastic with red cover
- Application: Junction boxes, quick wire terminations
- Pack Size: 50 connectors
| Ean Code | 4050821215141 |
| Product | Connector |
| Type | Push On |
| Colour | Transparent |
| Current Rating | 41 A |
| Pack Quantity | 50 |
| Voltage (max) | 400 V |
| Cable Size Range | 2.5 - 6 mm |
| Current Rating (max) | 41 A |
