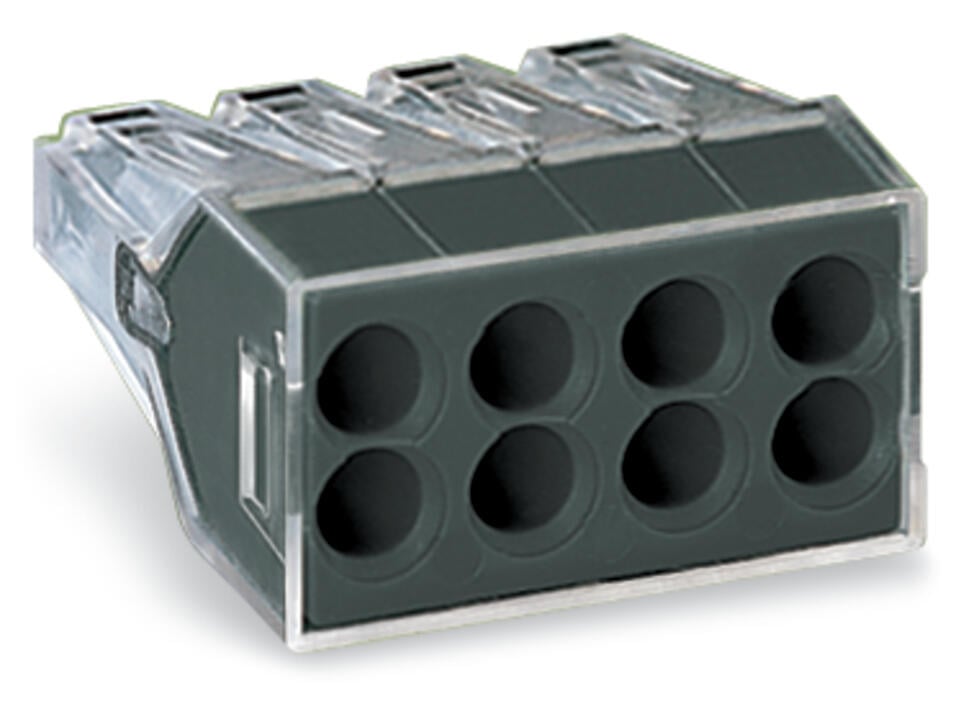

Wago 773-108 Transparent 8-Pole Push Wire Connector With Dark Grey Cover for Junction Boxes (Pack of 50)
The Wago 773-108 Push Wire Connector is designed for efficient and secure wiring in junction boxes, accommodating up to eight conductors with ease.
- 8-Conductor Terminal Block: Ideal for larger wiring configurations requiring multiple connections.
- Transparent Housing: Enables visual confirmation of proper conductor placement.
- Dark Grey Cover: Provides easy identification for the 8-conductor configuration.
- PUSH WIRE® Technology: Facilitates quick and reliable conductor termination.
Specifications
-
Conductor Sizes:
- Solid Core: 0.75mm² - 2.5mm²
- Stranded Core: 1.5mm² - 2.5mm²
- Current Rating: 24A
- Voltage Rating: 400V / 4KV
| Ean Code | 4044918397735 |
| Product | Connector |
| Type | Push On |
| Colour | Transparent |
| Current Rating | 24 A |
| Pack Quantity | 50 |
| Voltage (max) | 400 V |
| Cable Size Range | 0.75 - 2.5 mm |
| Current Rating (max) | 24 A |
