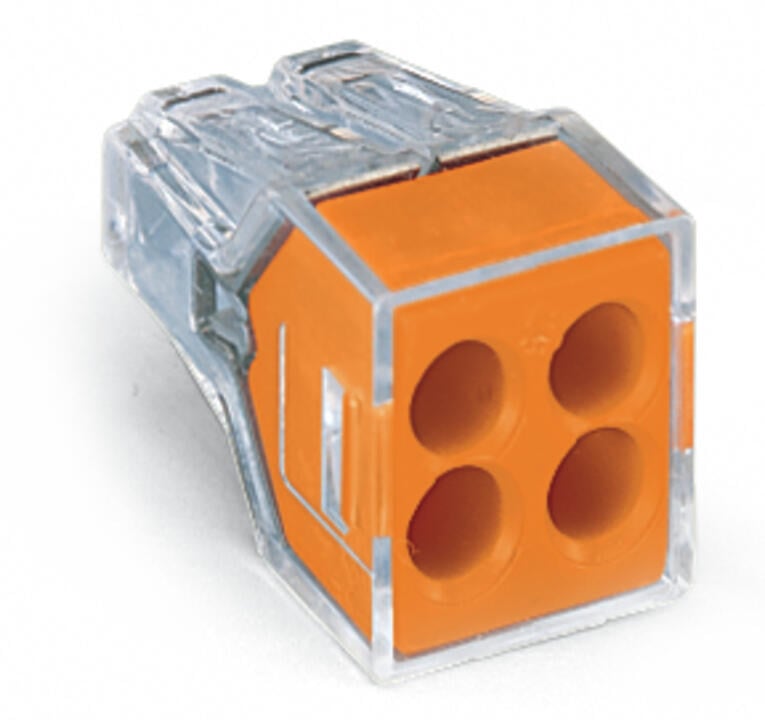

Wago 773-104 Transparent 4-Pole Push Wire Connector With Orange Cover for Junction Boxes (Pack of 100)
The Wago 773-104 Push Wire Connector is a reliable choice for junction box connections, designed to accommodate multiple conductors while ensuring secure and efficient terminations.
- 4-Conductor Terminal Block: Perfect for junction box wiring with multiple connections.
- Transparent Housing: Allows visual inspection for secure wire placement.
- Orange Cover: Clearly identifies the 4-conductor configuration.
- PUSH WIRE® Technology: Simplifies the termination of conductors with quick and safe connections.
Specifications
-
Conductor Sizes:
- Solid Core: 0.75mm² - 2.5mm²
- Stranded Core: 1.5mm² - 2.5mm²
- Current Rating: 24A
- Voltage Rating: 400V / 4KV
| Ean Code | 4044918397629 |
| Product | Connector |
| Type | Push On |
| Colour | Transparent |
| Current Rating | 24 A |
| Pack Quantity | 100 |
| Voltage (max) | 400 V |
| Cable Size Range | 0.75 - 2.5 mm |
| Current Rating (max) | 24 A |
